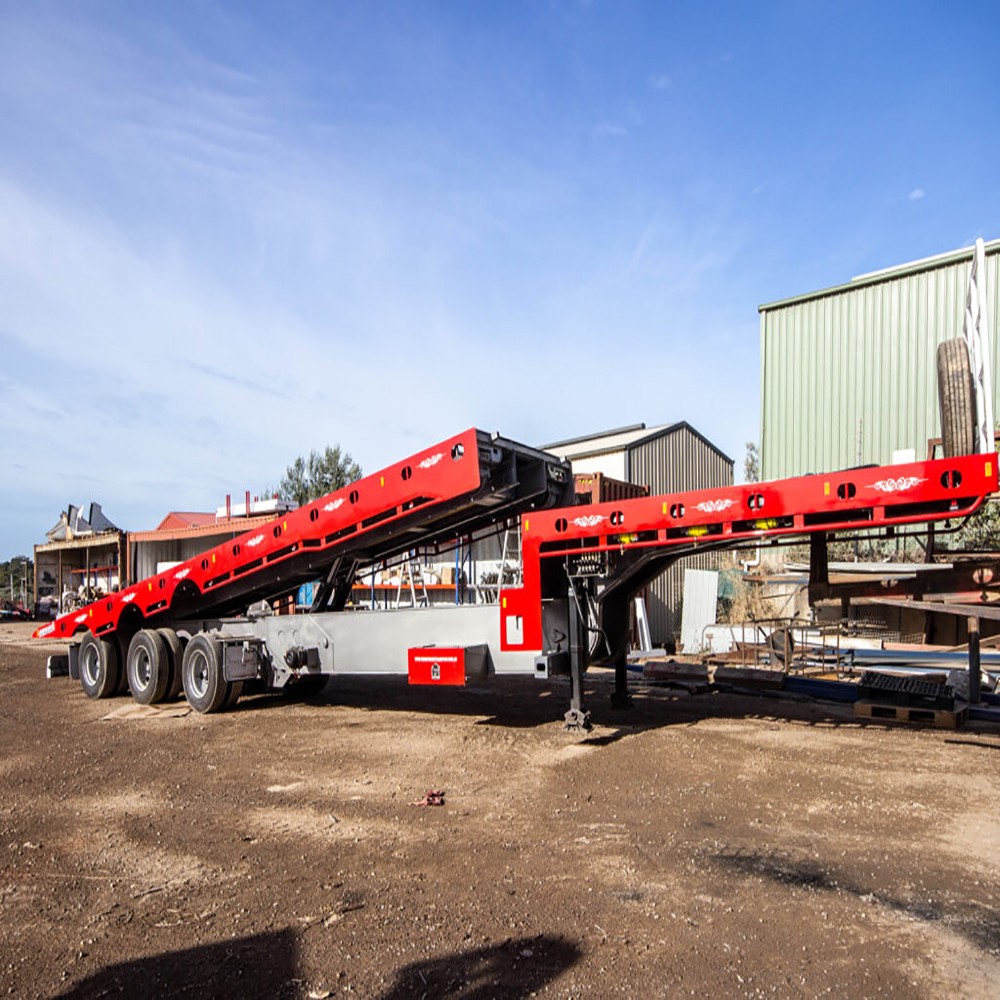

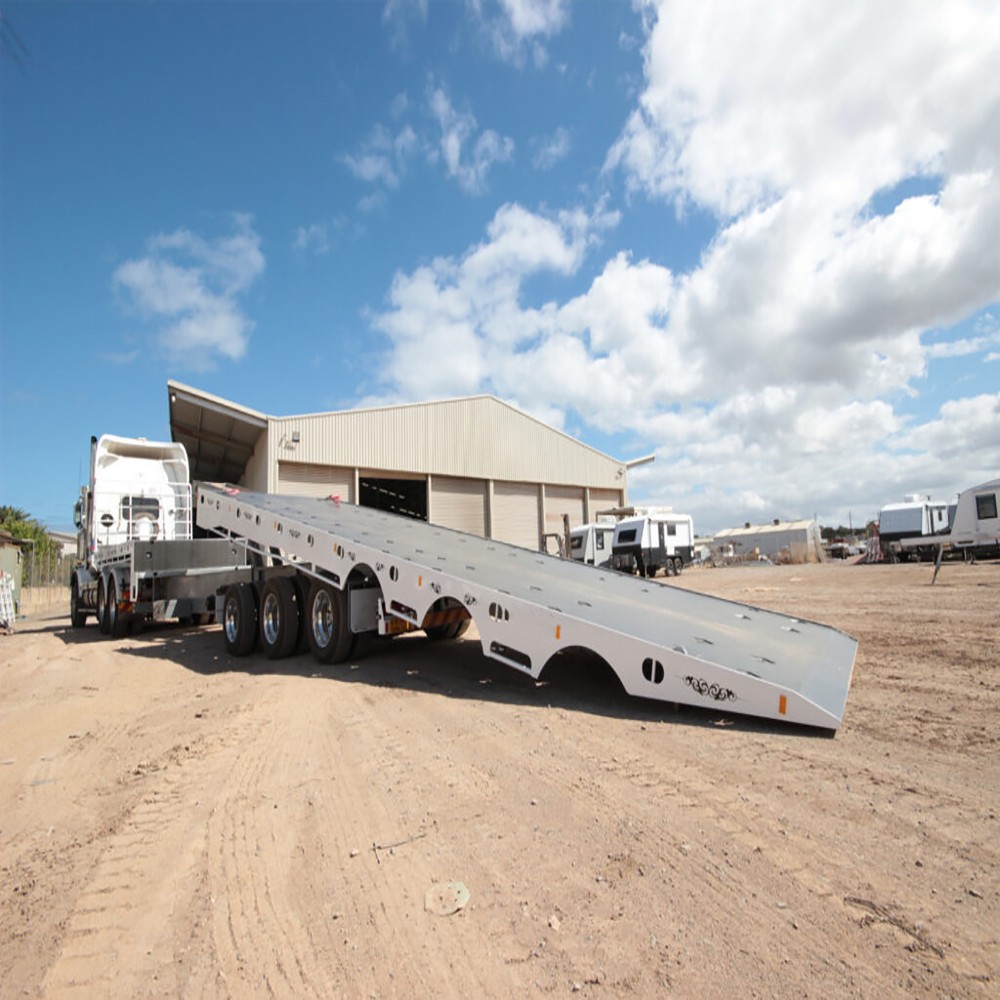

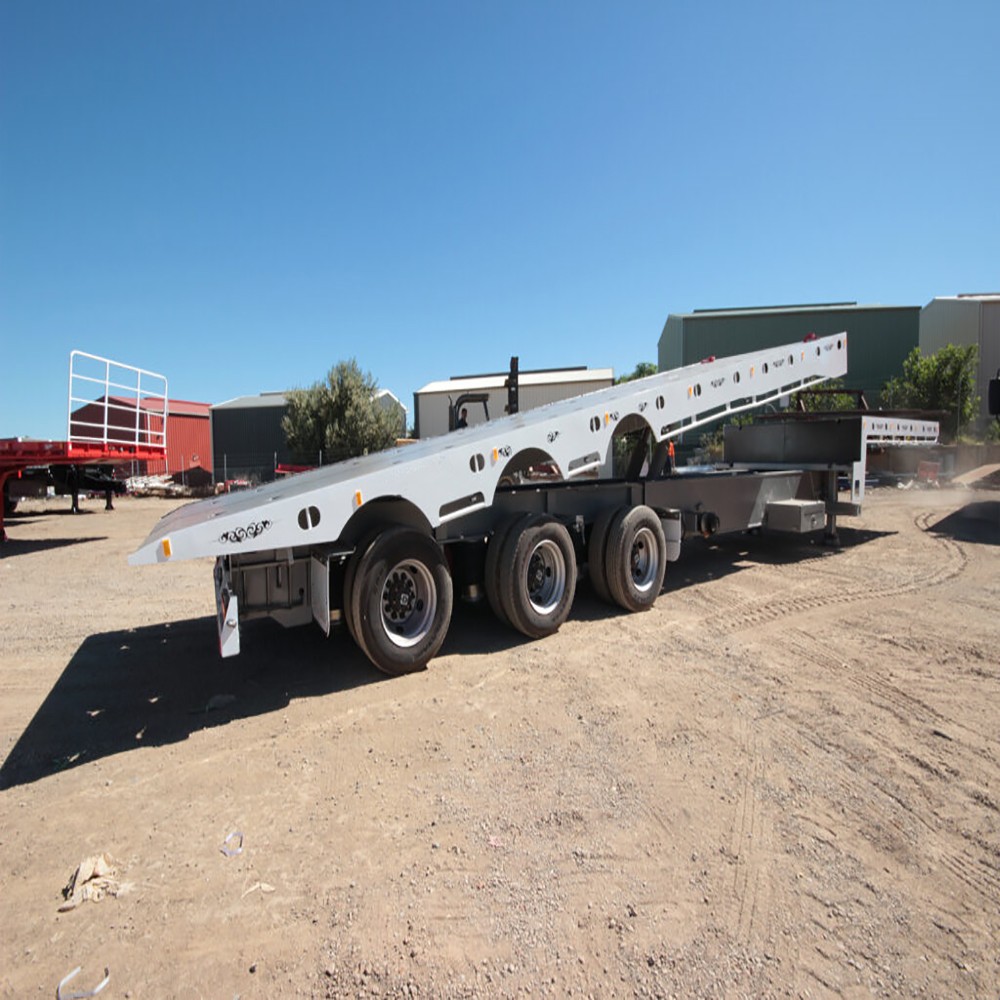

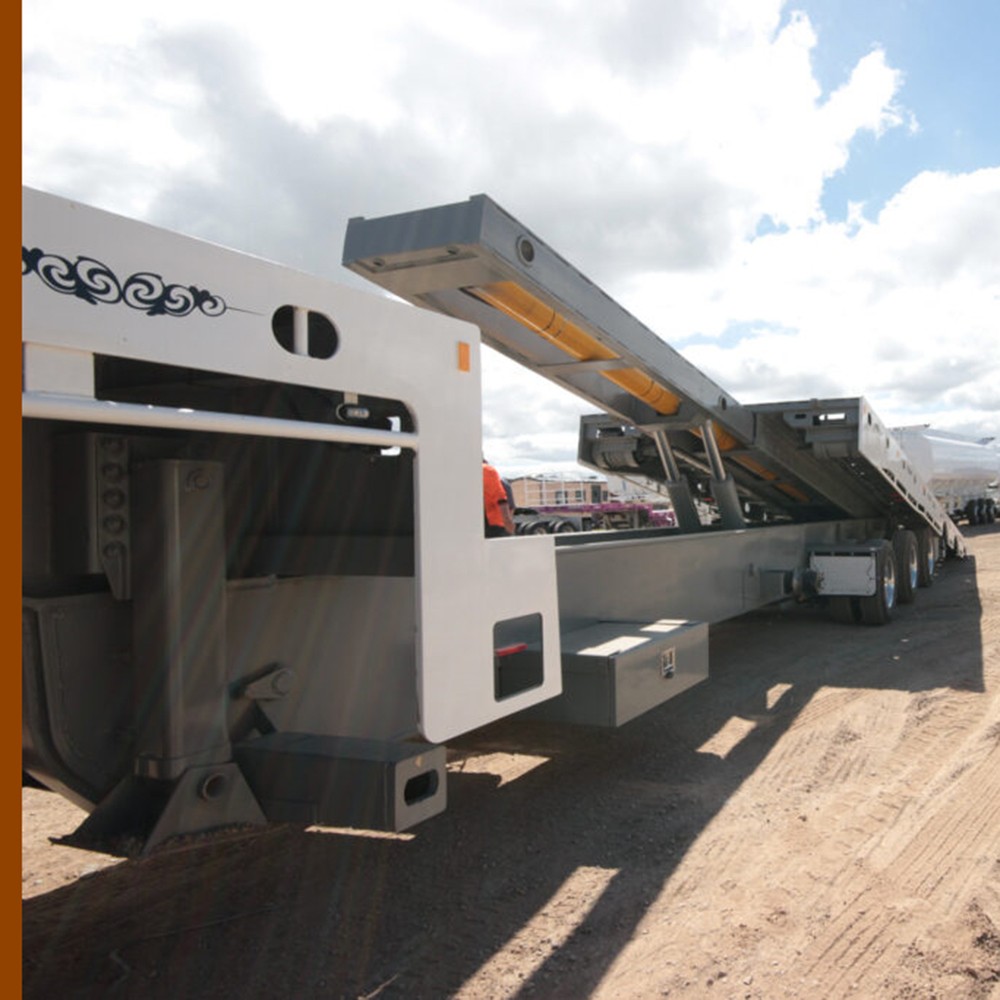

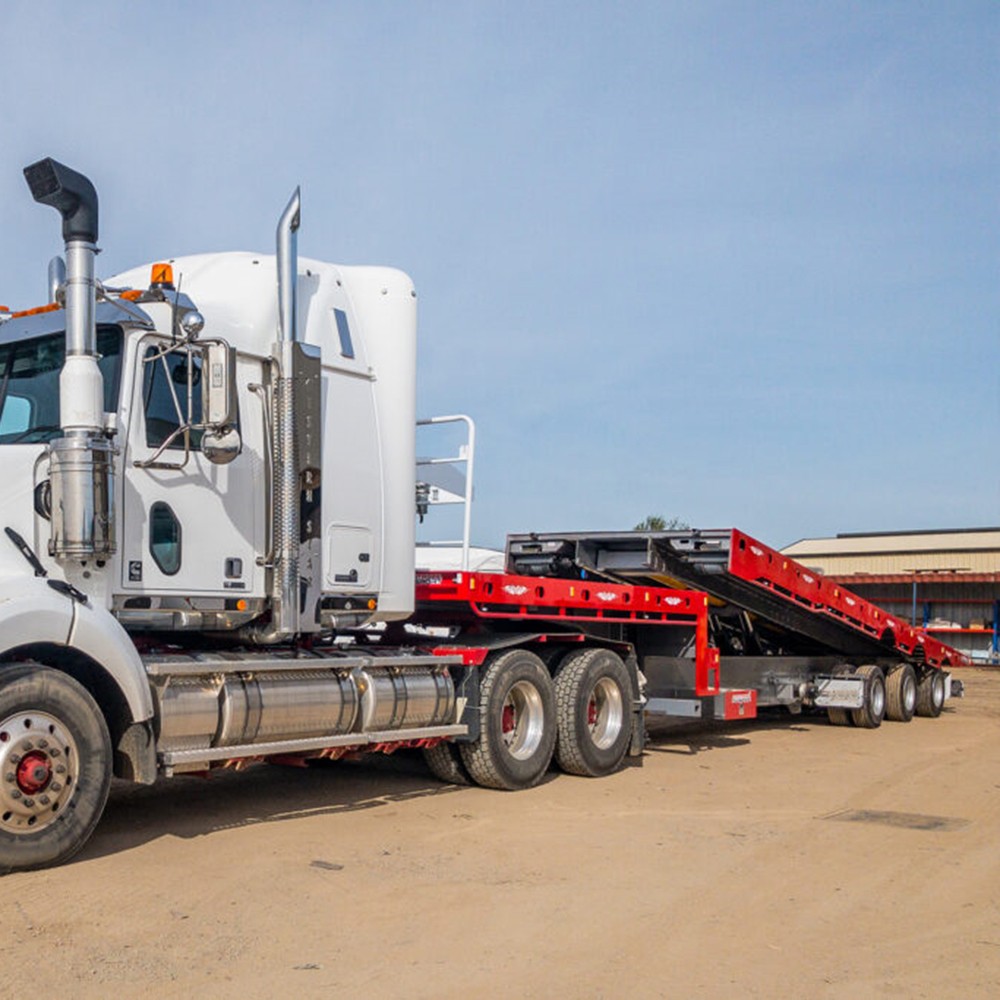

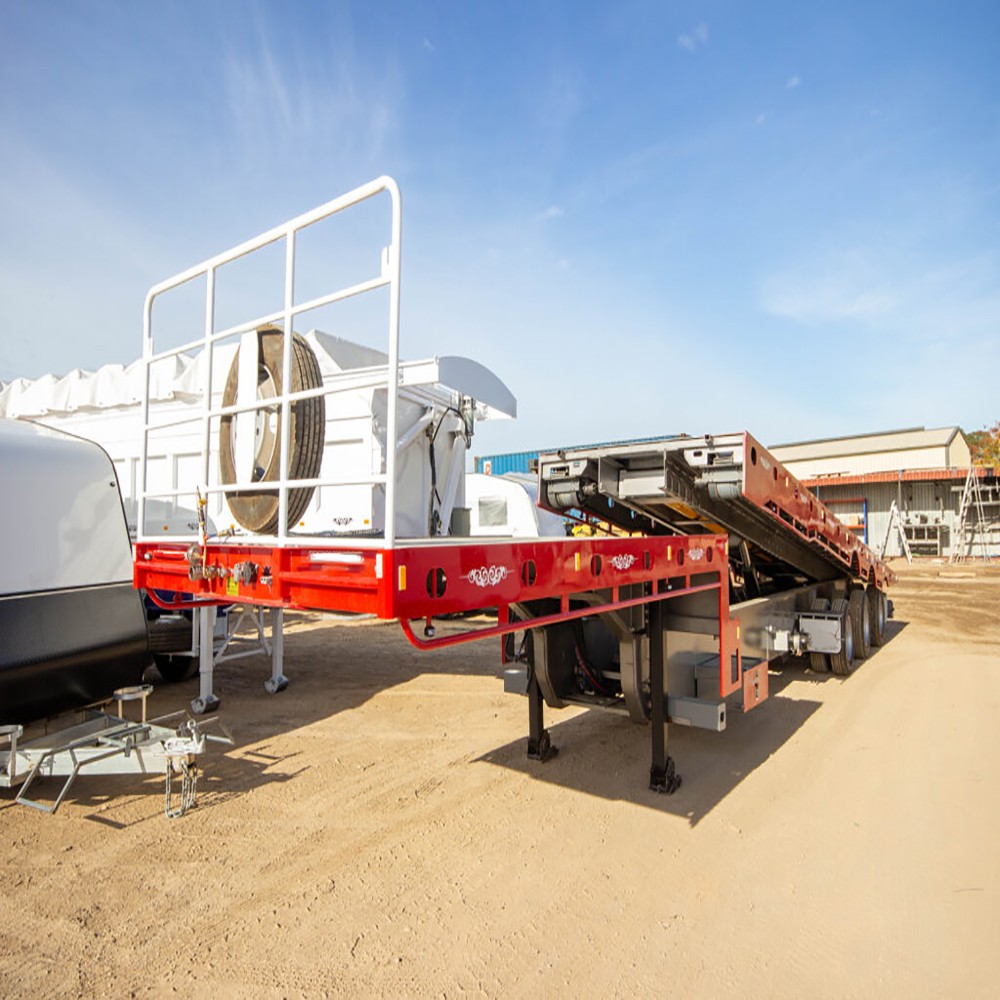

Slide Extendable Drop Deck Trailer


PRODUCT PROFILE
Product Name	Slide Extendable Drop Deck Trailer
Axle	13/16 Ton Fuwa/BPW/BERKLEY
Material	Carbon Steel/Aluminum/Stainless Steel
Tire	11.00r20 12r22.5 315 385
Length	Overall Length: 45FT (13,720mm) Extended length: 56FT (17,200mm)
Width Exterior	2,500 mm
Height Bottom Deck	999 mm
Capacity (ATM)	45 Tonnes
Tare Weight	14 Tonnes
Rim	9.00*22.5/ 6.5-20 (12/16 Pieces) Steel/ Aluminum
Leaf Spring	90mm13mm10/90mm16mm10
Landing Gear	JOST A400 Landing Gear (JOST E100 Also used)
Tool Box	Steel or Aluminum
Color	Customers Optional

Features：

1. Three-Stage Multi-Function Deck: Features a tilting and extending upper deck combined with a solid bottom deck, offering flexibility for cargo of various sizes and weights.

2. Integrated Heavy-Duty Winch System: Equipped with standard heavy-duty winches on multiple deck levels, providing powerful pulling force for securing large equipment and containers.

3. Flexible Loading & Tilting Modes: The tilting upper deck and extendable structure greatly simplify the loading and unloading process for heavy machinery.

4. Comprehensive Cargo Securing Solutions: Offers multiple tie-down points and container locks to ensure the stability and safety of various cargo types during long-haul transport.

5. Enhanced Long-Distance Configuration: Designed for demanding road-train operations with branded landing legs, efficient lighting, and advanced braking systems.
