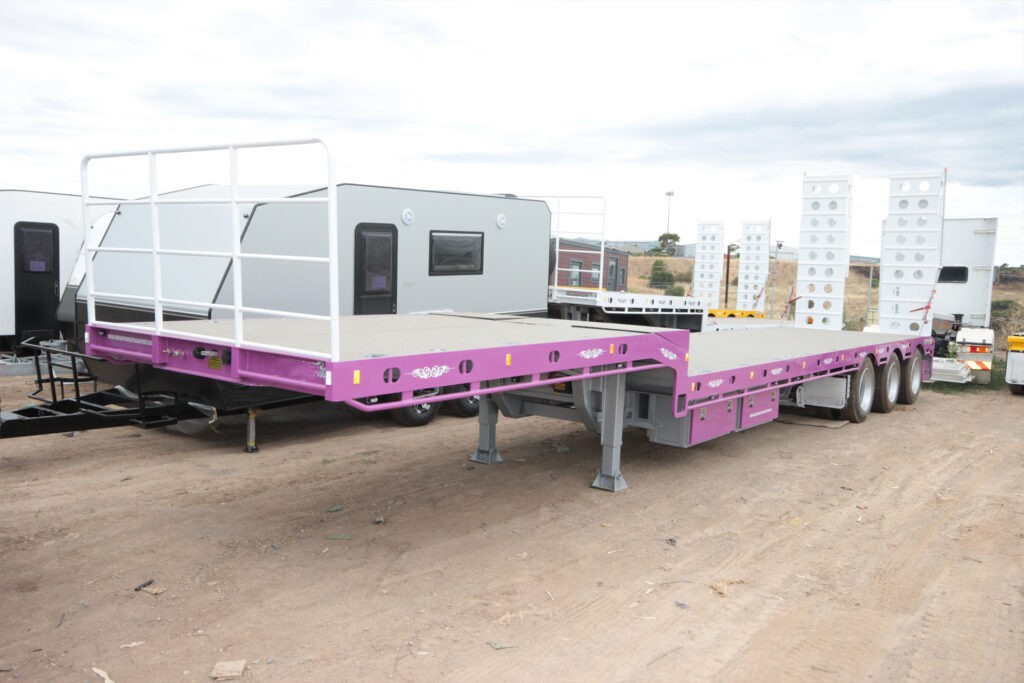

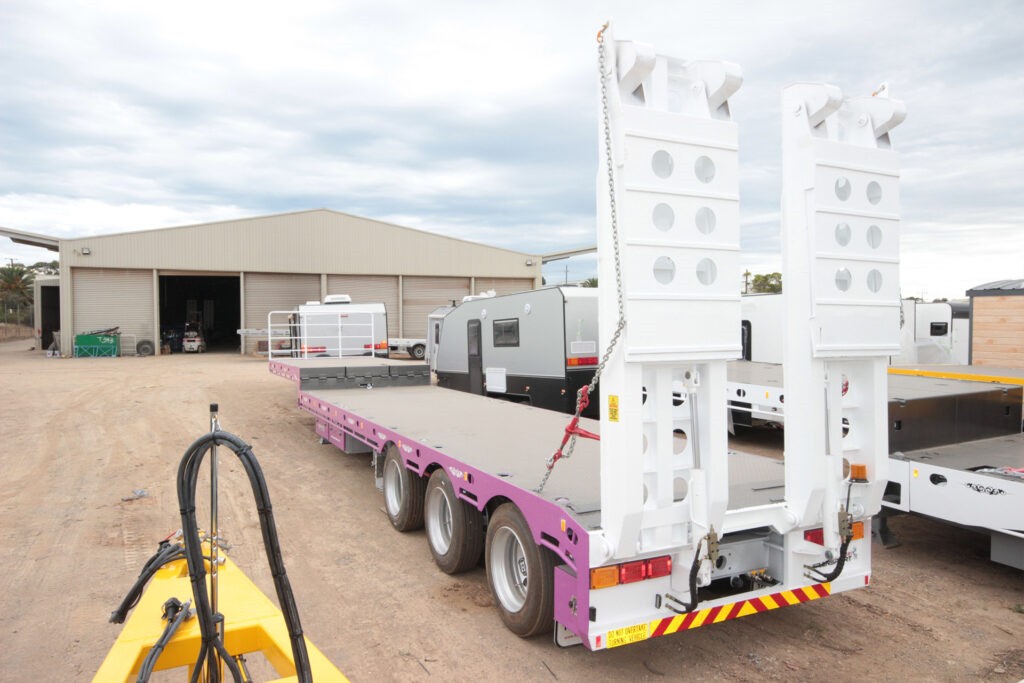

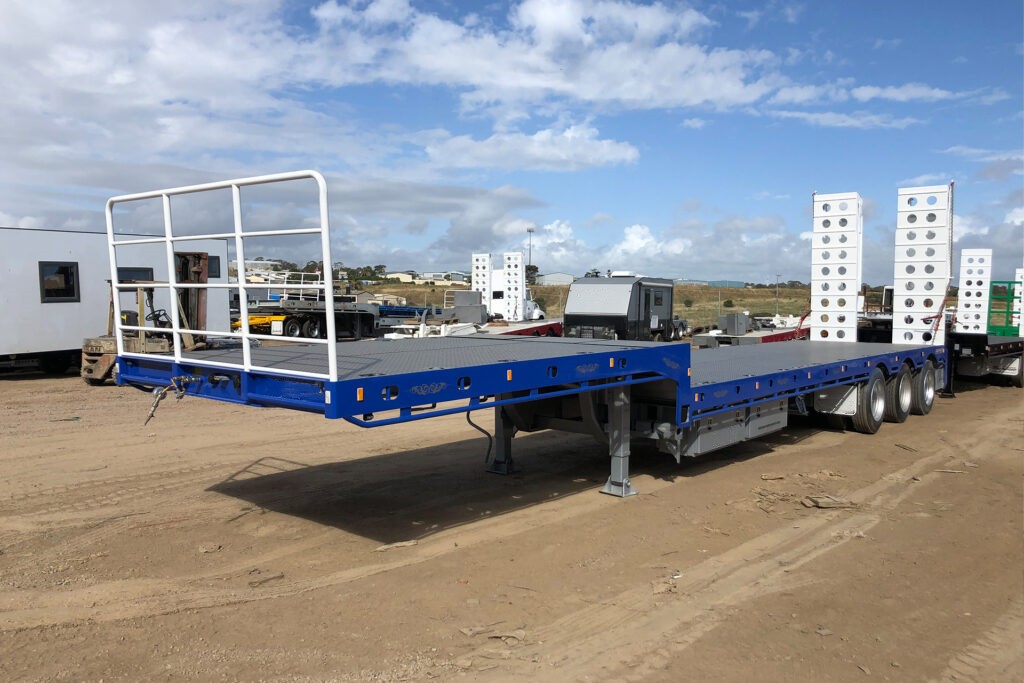

Drop Deck Trailer


PRODUCT PROFILE
Product Name	Drop Deck Trailer
Axle	13/16 Ton Fuwa/BPW/BERKLEY
Material	Carbon Steel/Aluminum/Stainless Steel
Tire	11.00r20 12r22.5 315 385
Suspension	Mechanical Suspension/ Air Suspension
Function	Transport Heavy Duty Equipment

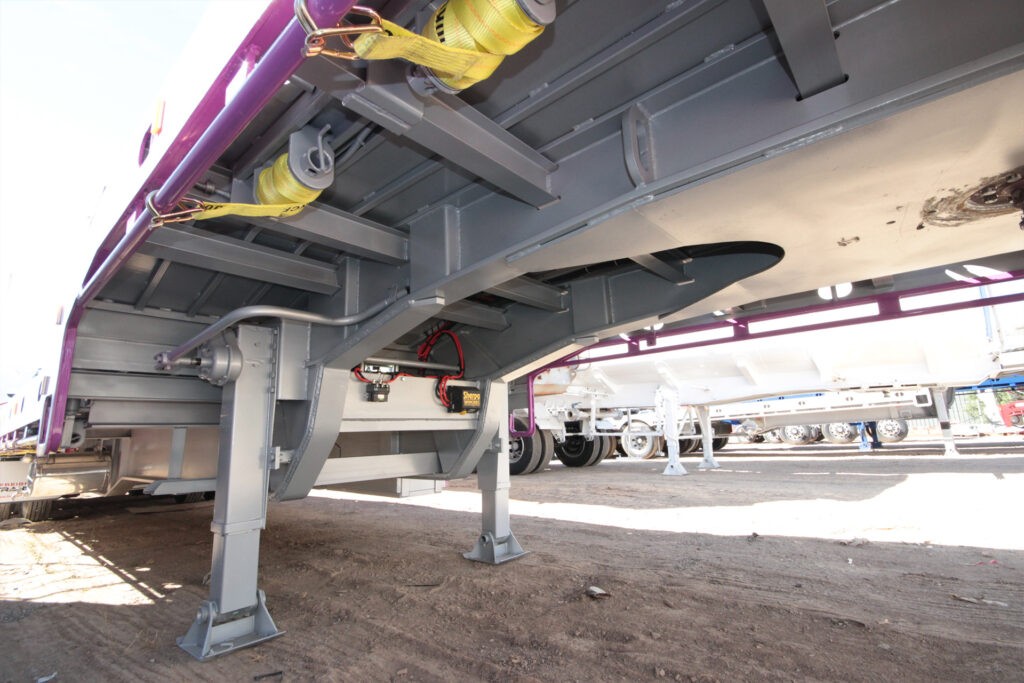

Landing Gear	JOST A400 Landing Gear (JOST E100 Also used)
King pin	2"(50mm)or3.5"(90mm)
Main Beam	Hight: 500mm
Length	Overall Length 45 FT (13720mm)- including the ramps
Width	Exterior: 2500mm
Height	20 inch axles: 1100mm, 19.5 inch axles: 995mm, 15 inch axles: 920mm
Capacity(ATM)	45 Tonnes
Capacity(GTM)	25 Tonnes
Tare Weight	Without Bi-Fold Ramps: 9.8 Tonnes With Bi-Fold Ramps: 10.5 Tonnes
Tool Box	Steel or Aluminum
Color	Customers Optional

Features：

1. A standard unit will feature all the necessities such as: JOST landing legs, 3-way twist locks, ramps for upper deck, tie-down points, 8mm thick laser cut side coaming, road-train bracket, LED side markers, ABS/EBS equipped.

2. Double welded I-Beam chassis construction allows for a tough and rigid frame.

3.Fully forklift and machine rated floors are standard.
