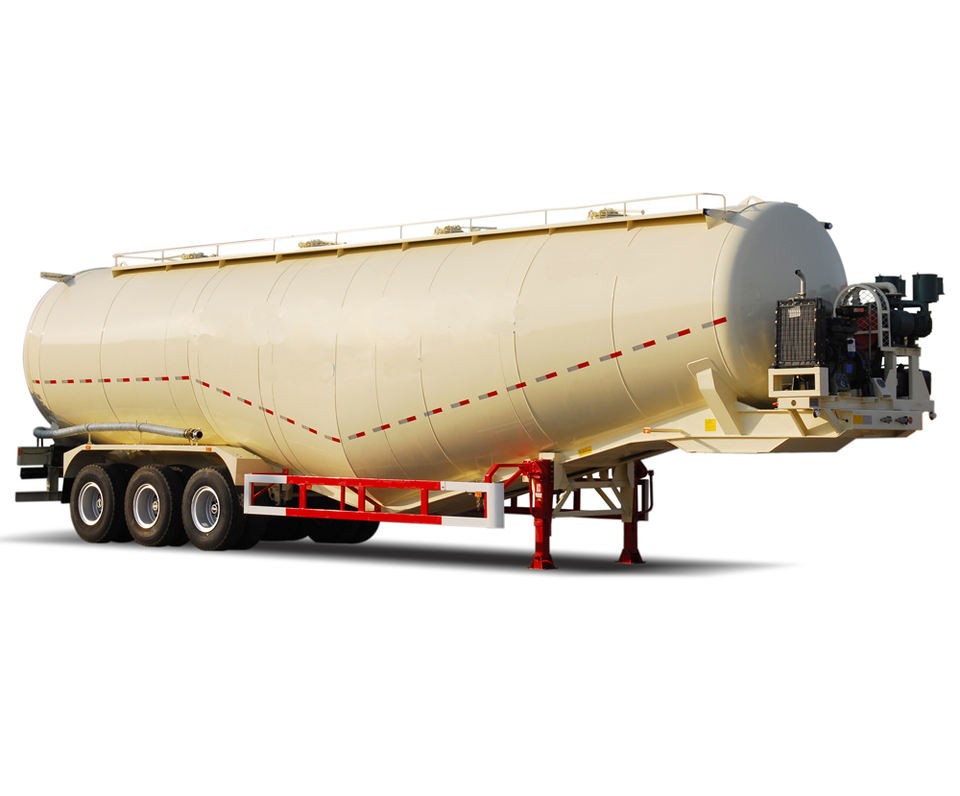

Bulk Cement Tank Semi Trailer


PRODUCT PROFILE
Product Name	Bulk Cement Semi Trailer
Axle	3 units, 13 Ton Fuwa Brand
Tire	12R22.5 12units
Rim	9.0-22.5 12units
Overall Dimensions	10500mm×2500mm×4000mm (the final dimensions depend on the final design drawings)
Tare weight	9.8 Ton
Payload	40 Ton
Total Volume	35 m³
Tank Body	The tanker body made of 5mm thickness steel plate, the shape is V type; Material is Q235 carbon steel
End Plate	6mm thickness, details according to the design
Manhole Cover	500mm manhole cover 3 sets
Leaf Spring	10 pcs
ABS	Chinese famous brand;4S/2M
Toolbox	1 set
Discharge Valve	4” disc valve
Discharge Pipe	4” seamless steel tube
Outlet Pipe	4” rubber hose.6m
Engine	Diesel engine, 4102 type
Air-compressor	12/2 double cylinder
Double braking chamber	30/30 spring break chamber
Shot-blasting and Painting	Chassis is completely shot-blasting to SA 2.5 grade, and painted with first layer of inter-national Zinc Epoxy primer (30 Microns DEF), the second layer international high built poly-urethane under coat (40 microns DFT), the third and fourth layers international alkyd finish top coat. Total 80-100 microns, high quality painting
Electrical System	24 volt electrical system, 7 pin electrical connector. Parking, stopping, reverse, number plate and indicator lights. rear lights conform to China standard, rear front and side reflectors
Side Guard	Cross bar structure

Features：

1. Strong Payload & Volume: Capable of hauling up to 40 tons and 35 m³, ideal for high-volume transport.

2. Robust & Durable Structure: Constructed with a V-shaped Q235 carbon steel tank and reinforced components for long-term durability and safety.

3. Efficient & Convenient Discharge System: Equipped with a 4" disc valve, seamless steel tube, and long rubber hose for rapid and flexible material discharge.

4. Advanced Braking & Safety Systems: Features a reputable brand ABS, double braking chambers, and spring brake chambers for reliable braking performance.

5. Long-lasting Surface Treatment: The chassis is shot-blasted and coated with multiple high-quality paint layers for superior corrosion resistance.
